Milling & Trimming
Precision Milled Cannabis for Extracts & Ground Product.
Precision Milling
Precision Milling is a continuous throughput mill that delivers fine and consistent plant material for cost effective cannabis oil extraction or beautiful ground product.
View All Key Features
Watch Milling in action!
Quality Construction, Easy to Clean, and GMP Ready.
The 304 stainless-steel construction with smooth internal surfaces and easy disassembly makes for fast cleaning and perfect integration with GMP certified facilities.
Key Features
Gentle on Flower, Tough on Stems.

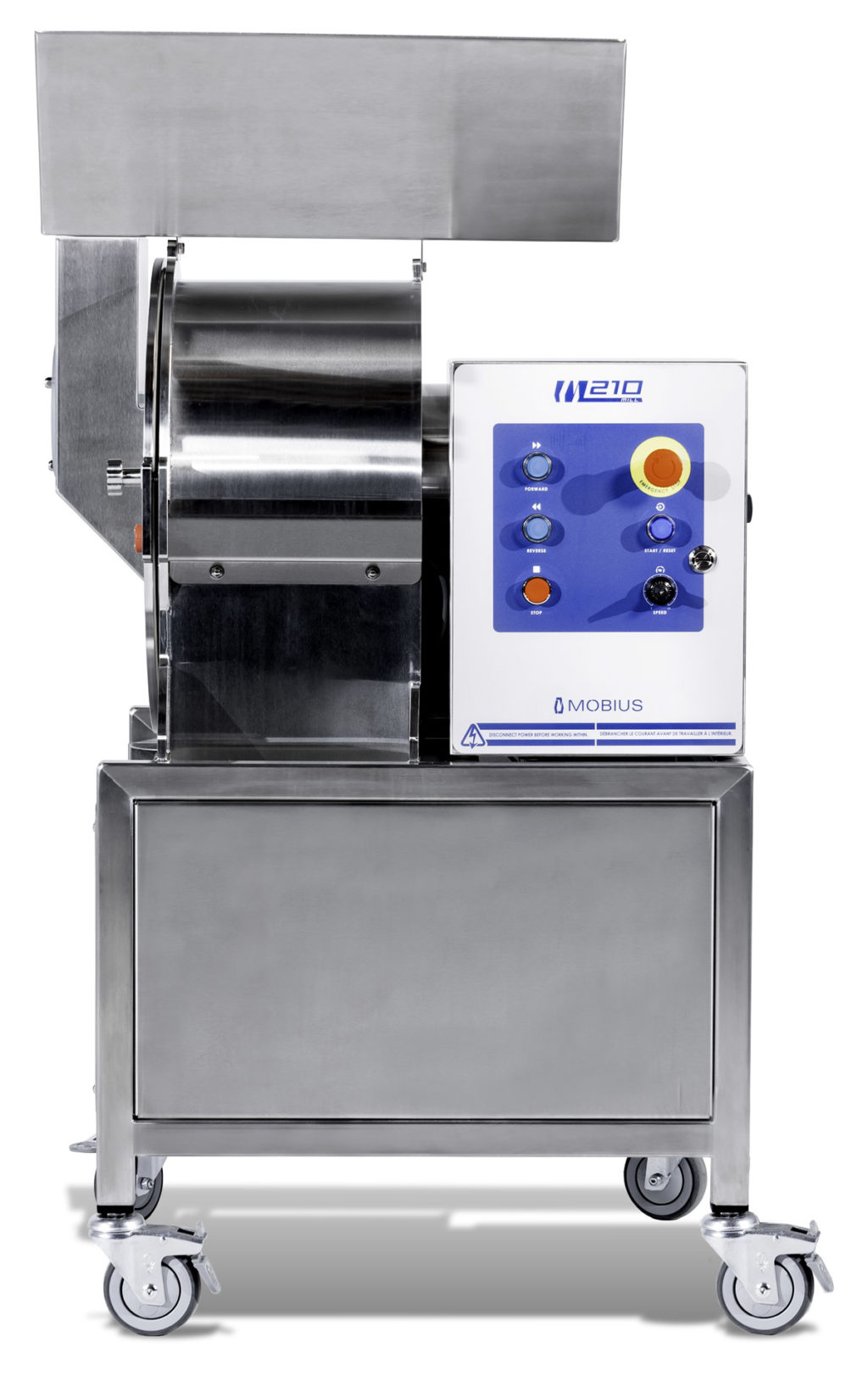

Add dry flower and trim of any size to the all-stainless steel construction and the M210 will produce a perfect, consistent grind with minimal powder. The unit has several screen options to customize output ranging from coarse to fine. The all stainless steel construction is easy to clean and ready for GMP facilities. Milled plant material can be caught in the included tote or an optional conveyor for fully automated workflows.
- 1. 110 lbs per hour dry
- 2. 5 screen options ranging from coarse to fine output
- 3. Quality 304 stainless steel construction
- 4. Indoor non-marking casters for easy positioning
- 5. GMP-compliant and easy to clean
- 6. Ergonomic design for perpetual operation
Screen Uses for the M210
The Mobius M210 is a continuous throughput mill with several screen options to customize output ranging from coarse to fine. The chart below outlines the specifications and intended use for each screen, though the Mill operates very differently depending on the strain and moisture. Some customers may use different screens on different strains for the same process.
KEY = recommended use | = can be used depending on strain and moisture content | = not recommended for this product
| Part # | Description | Hole Size (mm) | Hole Size (in) | Type | Pre-Rolls | CO2 Extraction | Ethanol Extraction | Hydrocarbon Extraction |
|---|---|---|---|---|---|---|---|---|
| 10-02-002803 * CMPS600 |
Coarse Blending Screen | 6.4mm | 1/4" | Perforated | ||||
| 10-02-002804 CMPS470 |
Coarse Standard Milling Screen | 4.7mm | 3/16" | Perforated | ||||
| 10-02-002805 * CMPS318 |
Medium Standard Milling Screen | 3.2mm | 1/8" | Perforated | ||||
| 10-02-002837 CMCS200 |
Fine Rasp Screen | 2.0mm | 5/64" | Rasp | ||||
| 10-02-002806 * CMCS160 |
Ultra Fine Rasp Screen | 1.6mm | 1/16" | Rasp |
* = SCREENS INCLUDED WITH EACH M210
Quality Construction, Easy to Clean, and GMP Ready.
The 304 stainless-steel construction with smooth internal surfaces and easy disassembly makes for fast cleaning and perfect integration with GMP certified facilities
Safety-First Design.
The glove-friendly control panel with emergency stop is conveniently positioned at the front of the device within easy reach of the operator. Controls include variable speed, reset, forward, and reverse. The M210 is CSA compliant for guarding and has a safety interlock on the access door.
Designed with Automation in Mind.
Milling can easily accommodate fully-automated workflows. The input hopper was designed to be fed by hand or conveyor. Consistently trimmed output with minimal powder can be collected in the included trim tote or caught by conveyor for automated packaging.
