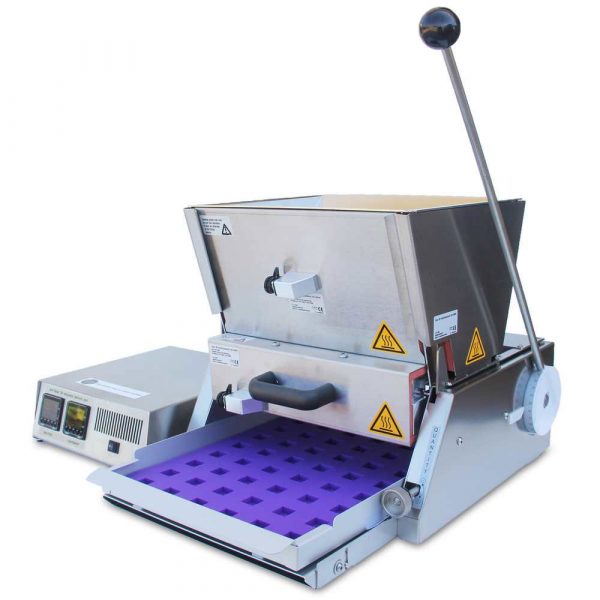

Universal 6L Depositor

This Universal Candy Depositor for gummies and hard candies is designed to work with all the Truffly Made silicone molds and most polycarbonate molds up to 11.5 inches wide, it delivers accurately metered fillings with great flexibility. Stainless steel construction with adjustable depositing nozzles that can be easily positioned to each mold layout. The Universal Candy Depositor comes with the hopper with heated panels.

Specs:

  • This Confectionery Depositor has a large hopper with heated panels
  • Easily adjustable shot size control.
  • Six nozzles have adjustable centerlines to accommodate various mold configurations.
  • The Universal Depositor works with molds up to 11.5 inches wide.
  • Nozzles are removable to accommodate molds with less cavities.
  • Heated panels help chocolate, caramel or gummy products maintain temperature to flow properly.
  • Digital, variable temperature control
  • Additional pistons and nozzles available
  • 40mm L nozzles
  • Compact, space saving design
  • CE certified
  • Made in Germany.
Width: 15.75"
Length: 20.75"
Height: 22.75"
Weight: 49 lbs
Capacity: 1.3 gal / 6 ltr
Material: Stainless
Max Heat: 320°ree;F / 160°ree;C
Guarantee: 12 Months

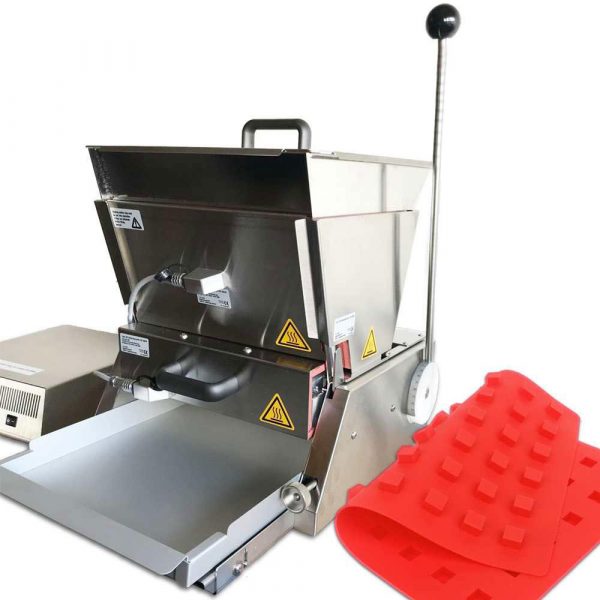

Universal 12L Depositor XL

This XL Universal Candy Depositor comes with the extra large hopper with heated panels for gummies and hard candies is designed to work with all the Truffly Made silicone molds and most polycarbonate molds up to 11.5 inches wide, it delivers accurately metered fillings with great flexibility. Stainless steel construction with adjustable depositing nozzles that can be easily positioned to each mold layout.

6 and 8 piston options available.

Specs:

  • This Confectionery Depositor has a extra large 12 liter/3.2 gal hopper with heated panels
  • Easily adjustable shot size control.
  • Six or Eight nozzles have adjustable centerlines to accommodate various mold configurations.
  • The Universal Depositor works with molds up to 11.5 inches wide.
  • Nozzles are removable to accommodate molds with less cavities.
  • Heated panels help chocolate, caramel or gummy products maintain temperature to flow properly.
  • Digital, variable temperature control
  • Additional pistons and nozzles available
  • 40mm L nozzles
  • Compact, space saving design
  • CE certified
  • Made in Germany.
Width: 15.75"
Length: 20.75"
Height: 22.75"
Weight: 49 lbs
Capacity: 3.2 gal / 12 ltr
Material: Stainless
Max Heat: 320°ree;F / 160°ree;C
Guarantee: 12 Months

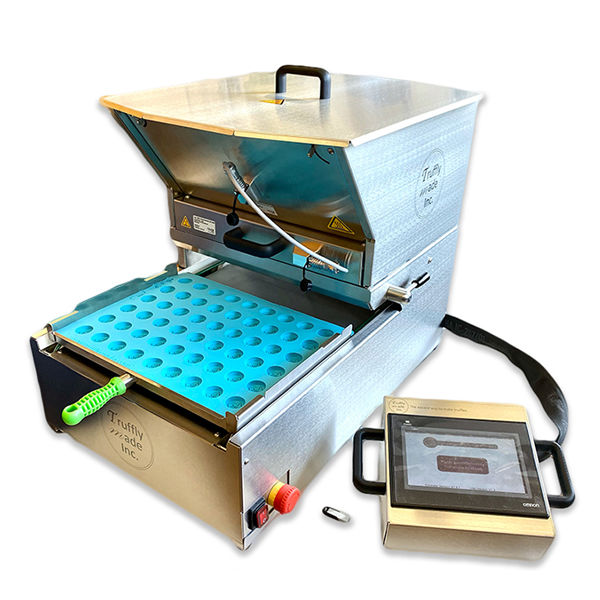

Automatic Universal Depositor

The Automatic Depositor comes with the 20 liters hopper with heated panels for chocolate, gummy, caramel and hard candy.

10 depositing pistons for maximum efficiency and productivity; Stainless steel construction with adjustable depositing nozzles that can be easily positioned to each mold layout. Touchscreen Unit Control that allow you to set the required temperature and volume before and during live production. This depositor is designed to work with all the Truffly Made silicone molds and most polycarbonate molds, it delivers accurately metered fillings with great flexibility and can deposit 5000 – 7000 pieces per hour.

Specs:

  • This Confectionery Depositor has a extra large 12 liter/3.2 gal hopper with heated panels
  • Easily adjustable shot size control.
  • Six or Eight nozzles have adjustable centerlines to accommodate various mold configurations.
  • The Universal Depositor works with molds up to 11.5 inches wide.
  • Nozzles are removable to accommodate molds with less cavities.
  • Heated panels help chocolate, caramel or gummy products maintain temperature to flow properly.
  • Digital, variable temperature control
  • Additional pistons and nozzles available
  • 40mm L nozzles
  • Compact, space saving design
  • CE certified
  • Made in Germany.
Width: 19"
Length: 27.75"
Height: 22.5"
Weight: 143 lbs
Capacity: 5.3 gal / 20 ltr
Material: Stainless
Max Heat: 302°ree;F / 150°ree;C
Guarantee: 12 Months
